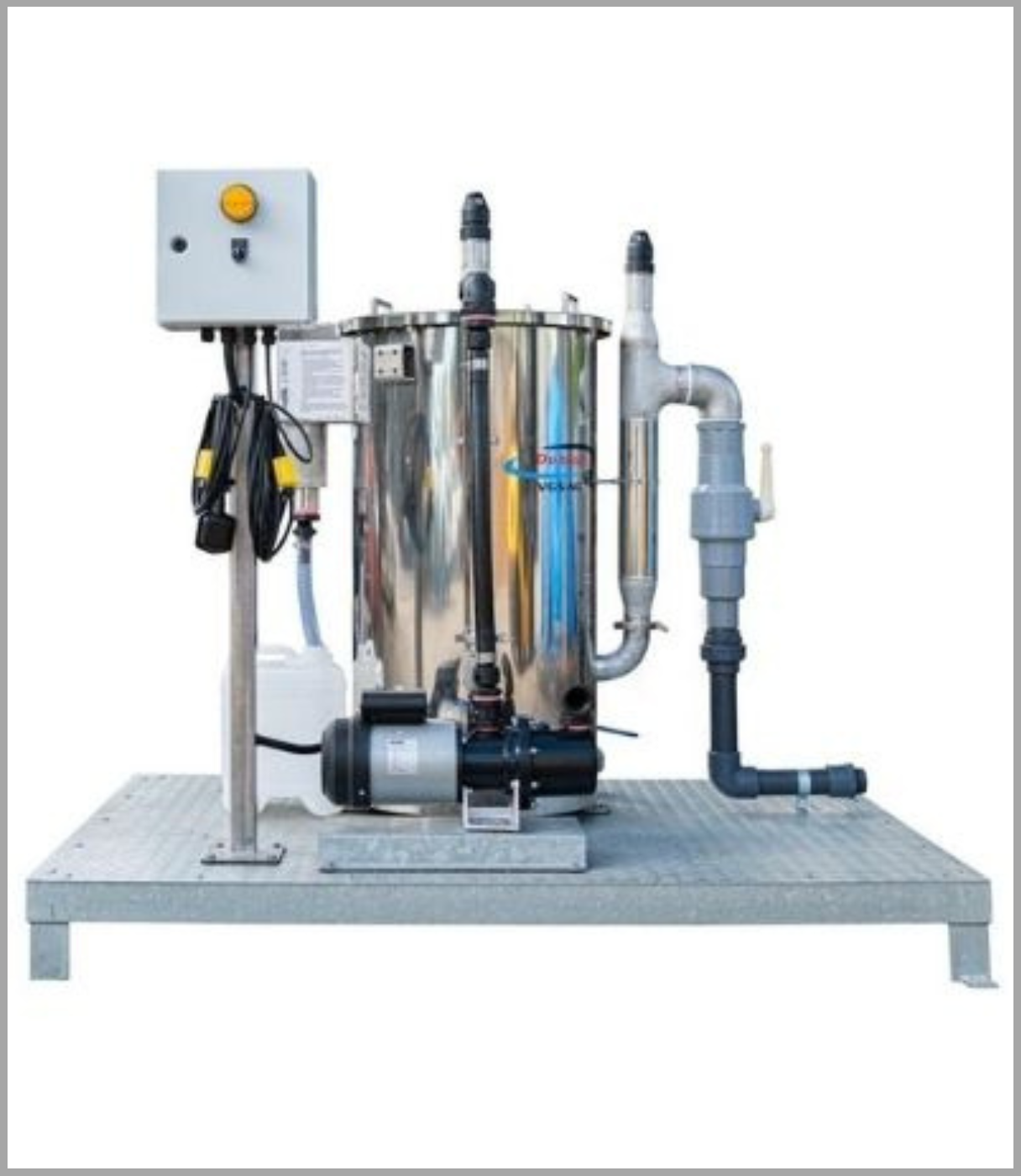

Oil Water Separator VGS 3000 Litre Per Hour Skid Mounted System
Regular price
$17,217.00
The Oil Water Separator VGS 3000 Litre Per Hour Skid Mounted System is an advanced, high-capacity solution designed to efficiently remove free and dispersed non-emulsified oils, grease, and suspended solids from wastewater. Operating at a flow rate of 3000 litres per hour, this system utilizes Vertical Gravity Separation (VGS) technology, offering reliable and consistent performance in a compact and easy-to-install skid-mounted design.
Built for durability and simplicity, the VGS 3000 system is constructed using corrosion-resistant materials and pre-assembled onto a robust steel skid frame, allowing for quick installation and easy integration into existing wastewater infrastructure. This system is ideally suited for use in a wide range of industries including automotive, mining, construction, marine, and heavy manufacturing, where oily wastewater is commonly generated.
Whether you are aiming to meet strict environmental discharge standards or simply want to reduce maintenance and downtime, this system delivers cost-effective, environmentally responsible treatment.
Specifications
- Flow Rate: 3000 Litres Per Hour
- Technology: Vertical Gravity Separator (VGS)
- Oil Removal Efficiency: Removes up to 100% of free oils and up to 90% of total oil and grease
- Particle Separation: Effective for solids ≥ 60 micron
- System Type: Skid-Mounted (plug-and-play setup)
- Construction Materials: High-grade steel skid frame, corrosion-resistant components
- Power Supply: 240V / 415V (customizable options available)
- Pump Included: Yes – matched to system requirements
- Dimensions: Approx. 1900mm (L) x 900mm (W) x 1600mm (H)
- Weight: Approx. 250–300 kg
- Maintenance: Low – minimal moving parts
- Optional Add-ons: Pre-filtration system, oil storage tanks, level sensors, alarm systems
Inclusions
- 304 stainless steel 3000 LPH VGS separator
- Cone pack assembly
- Stainless steel sludge drain valve
- Vent cowls fitted
- Safety and function labels
- Stainless steel control panel stand
- 240V control panel with integrated high-level alarm
- 2 x 10m float switches
- Galvanized steel pump base
- 240V 3000 LPH helical rotor pump
- Checker plate galvanized skid – 1.2m x 1.8m
- All internal plumbing and electrical connections fully completed
For personalized guidance, call our team or email us at sales@bestbunding.com.au. Whether you need advice on quantities or answers to other questions, we’re here to assist!
Product Code: EV00096DV-3000S-SKID
20 Years Expertise
100% Secure Checkout
Quality Guaranteed
Premium Support
Benefits of Oil Water Separator VGS 3000 Litre Per Hour Skid Mounted System
High-Performance Separation with Minimal Maintenance
Engineered to remove free and dispersed oils efficiently at up to 3000L/hr, this system ensures compliance with environmental standards while operating without the need for filters or chemicals. With minimal moving parts, it’s built for long-term reliability and easy servicing.Compact, Plug-and-Play Design
The fully pre-assembled skid-mounted system features a small footprint and rapid installation. Everything from the pump to the control panel is integrated and tested—just connect the power and plumbing, and it’s ready to run.Built Tough for Demanding Industrial Environments
Constructed using high-grade stainless steel and galvanised components, the system withstands harsh operating conditions. Ideal for mining, automotive, marine, and industrial applications where durability and resilience are essential.FAQs
What kind of oils can the VGS 3000 remove?
What is the difference between a VGS and traditional oil-water separators?
How easy is it to install?
Does it require chemicals or filters?
Can I use it outdoors?
How often does it need servicing?
Can it be integrated into existing wastewater systems?
