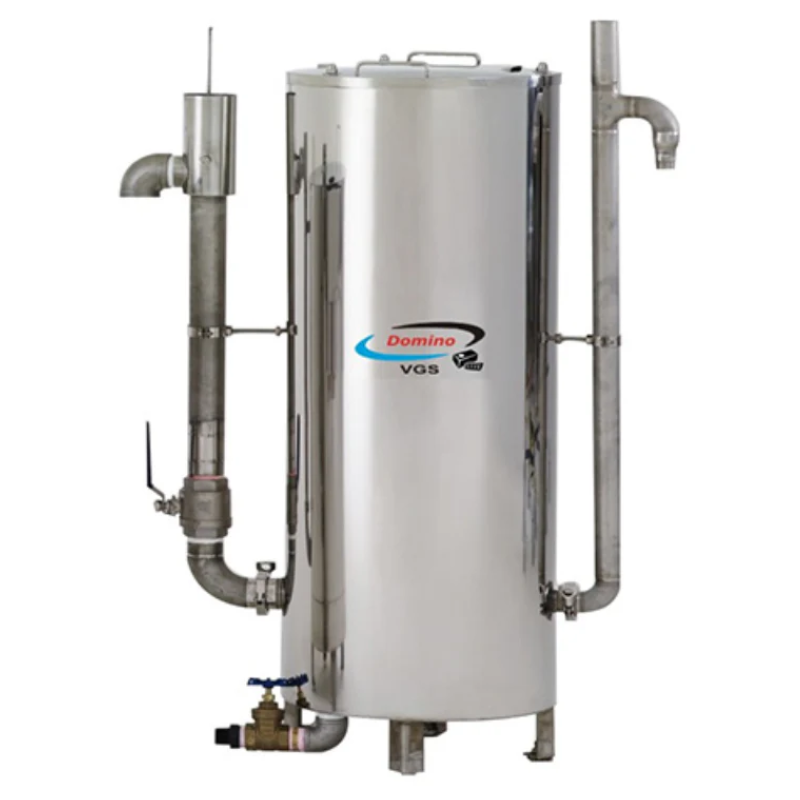

Oil Water Separator VGS 3000 Litre Per Hour (Base components only model)
Regular price
$8,350.00
The Oil Water Separator VGS 3000 Litre Per Hour – Base Components Only Model offers a powerful and flexible wastewater treatment solution that combines the proven performance of Vertical Gravity Separation (VGS) technology with a high-efficiency Oil Removal Cartridge. This model is designed for users who need only the core system components, giving them the freedom to build a custom setup suited to their site conditions.
At the heart of this system is the Vertical Gravity Separator, which controls both fluid velocity and pressure to effectively remove non-emulsified impurities. As contaminated water flows through the VGS, high-density particles such as grit, sludge, and other suspended solids are directed into a sludge chamber for easy removal. Free-floating oils and lighter contaminants are efficiently separated and collected at the top.
What sets this model apart is its integrated Oil Removal Cartridge, which enhances hydrocarbon removal beyond basic oil-water separation. This cartridge is engineered to target and extract a wide spectrum of persistent organic pollutants, including:
-
BTEX chemicals (benzene, toluene, ethylbenzene, xylene)
-
PCBs (polychlorinated biphenyls)
-
Chlorinated solvents
-
Organically bound heavy metals
-
Suspected carcinogens and other toxic hydrocarbons
Together, the VGS and cartridge create a dual-stage treatment process that is especially effective in high-risk industrial and environmental applications. Supplied as a standalone, base-only configuration, this model is perfect for integration into custom-built systems, OEM setups, or facility retrofits requiring reliable and scalable treatment performance.
Specifications
- Flow Rate: 3000 Litres Per Hour
- Technology: Vertical Gravity Separator (VGS)
- Oil Removal Efficiency: Up to 100% of free oils; 90% of total oil and grease
- Construction Material: 304 Stainless Steel
- Outlet Oil Content: Typically <10 ppm (site-dependent)
- Dimensions: Approx. 900mm (Diameter) x 1600mm (Height)
- Weight: Approx. 120 kg
- Installation Type: Supplied as base unit only (not skid-mounted)
- Power Requirement: N/A (pump and controls not included)
- Included Components: VGS body, cone pack internals, sludge valve, vent cowls, and labels
- Add-ons Available: Control panel, pump, stand, plumbing, float switches (sold separately)
Inclusions
- 304 stainless steel 3000 lph separator
- Stainless steel cone pack assembly
- Stainless steel sludge valve
- Labels
- 240 volt control panel with high level alarm
- 20ltr oil collection drum
- 2 x 10m float switches
- 240 v 300lph helical rotor pump
For personalized guidance, call our team or email us at sales@bestbunding.com.au. Whether you need advice on quantities or answers to other questions, we’re here to assist!
Product Code: EV00095DV-3000-M
20 Years Expertise
100% Secure Checkout
Quality Guaranteed
Premium Support
Benefits of Oil Water Separator VGS 3000 Litre Per Hour (Base components only model)
Flexible Installation for Custom Applications
The base model gives engineers and site managers full control to integrate the separator into existing infrastructure or tailor it to specific site conditions, making it ideal for custom or retrofit installations.Efficient, Chemical-Free Separation
Using vertical gravity separation technology, this system effectively removes oils and suspended solids from wastewater without the need for chemicals, filters, or ongoing consumables.Durable & Industrial-Grade Design
Constructed from corrosion-resistant 304 stainless steel and engineered to handle high-flow, heavy-duty applications with minimal wear and tear over time.FAQs
What is included in the "Base Components Only" model?
Who is this model best suited for?
Can I add the missing components later?
Does this system still provide the same separation performance as the full skid-mounted version?
What maintenance is required?
